Frigidaire CPLEF398CCB Electric Range Timer

What is the timer/clock part number for the Frigidaire CPLEF398CCB Electric Range?

Timer part number 316207600 for Frigidaire CPLEF398CCB

The CPLEF398CCB Electric Range uses timer part number 316207600.

Do you have a failed Frigidaire CPLEF398CCB control panel? Click here:

Request Appliance Timer Service

We can repair or replace your faulty Frigidaire CPLEF398CCB timer.

CPLEF398CCB are also sometimes referred to using these Alternative Names/Model numbers

Electrolux CPLEF398CCB Electric Range, CPLEF398DCL, CPLEF398DCH, CPLEF398DCK, CPLEF398DCJ, CPLEF398DCE, CPLEF398DCD

CPLEF398CCB Schematic and Wiring Diagrams

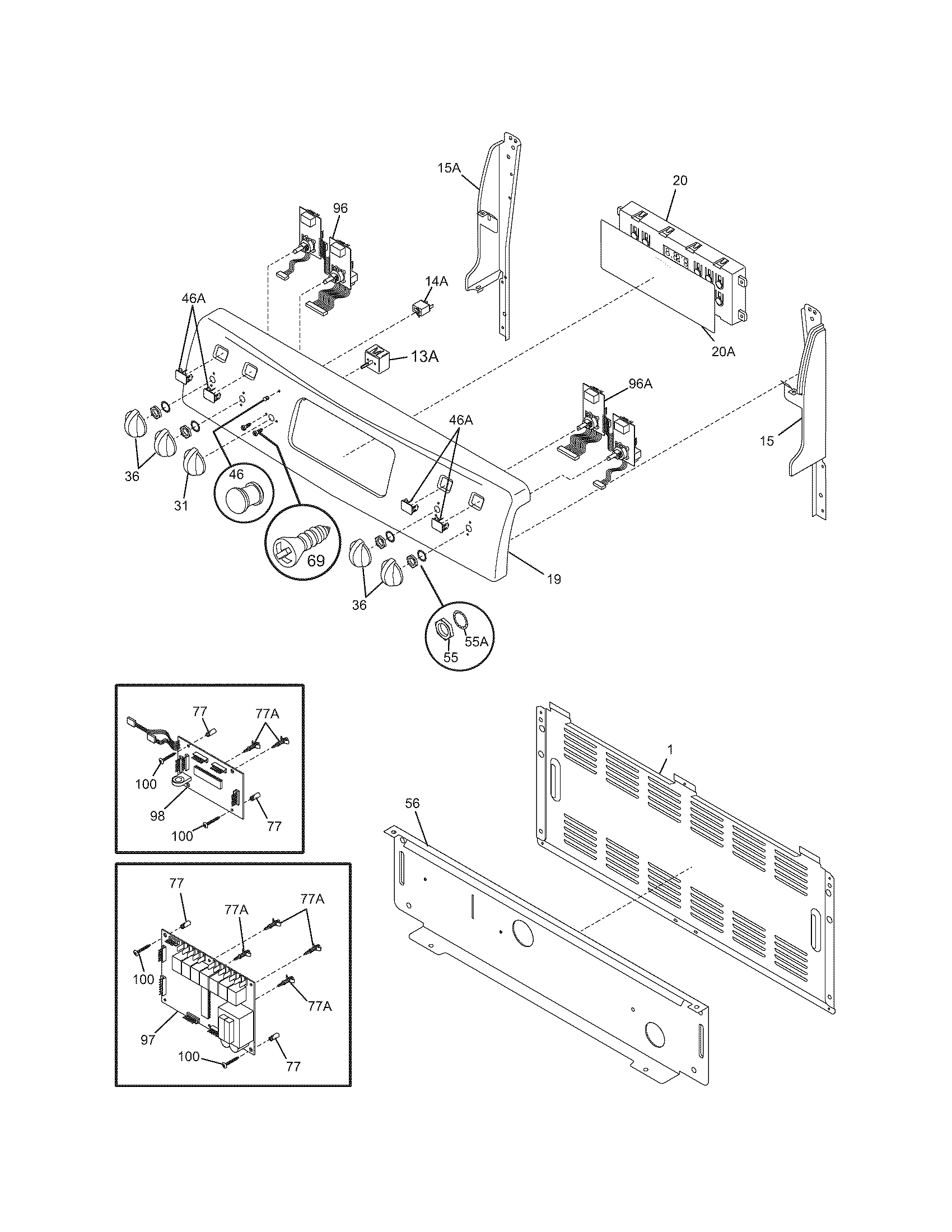

Backguard Parts diagram
CPLEF398CCB Electric Range Backguard Parts diagram
Body Parts diagram
CPLEF398CCB Electric Range Body Parts diagram

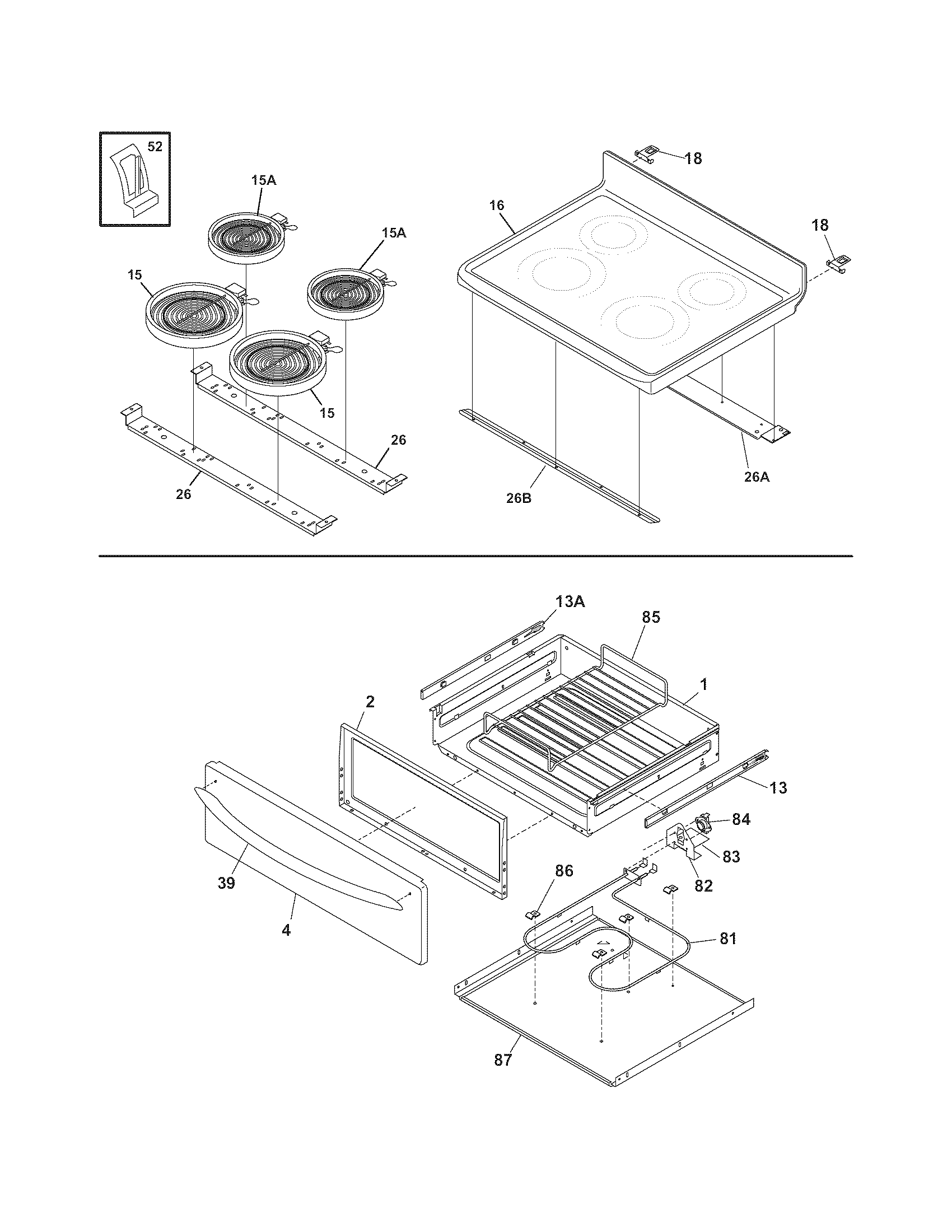

Top/drawer Parts diagram
CPLEF398CCB Electric Range Top/drawer Parts diagram

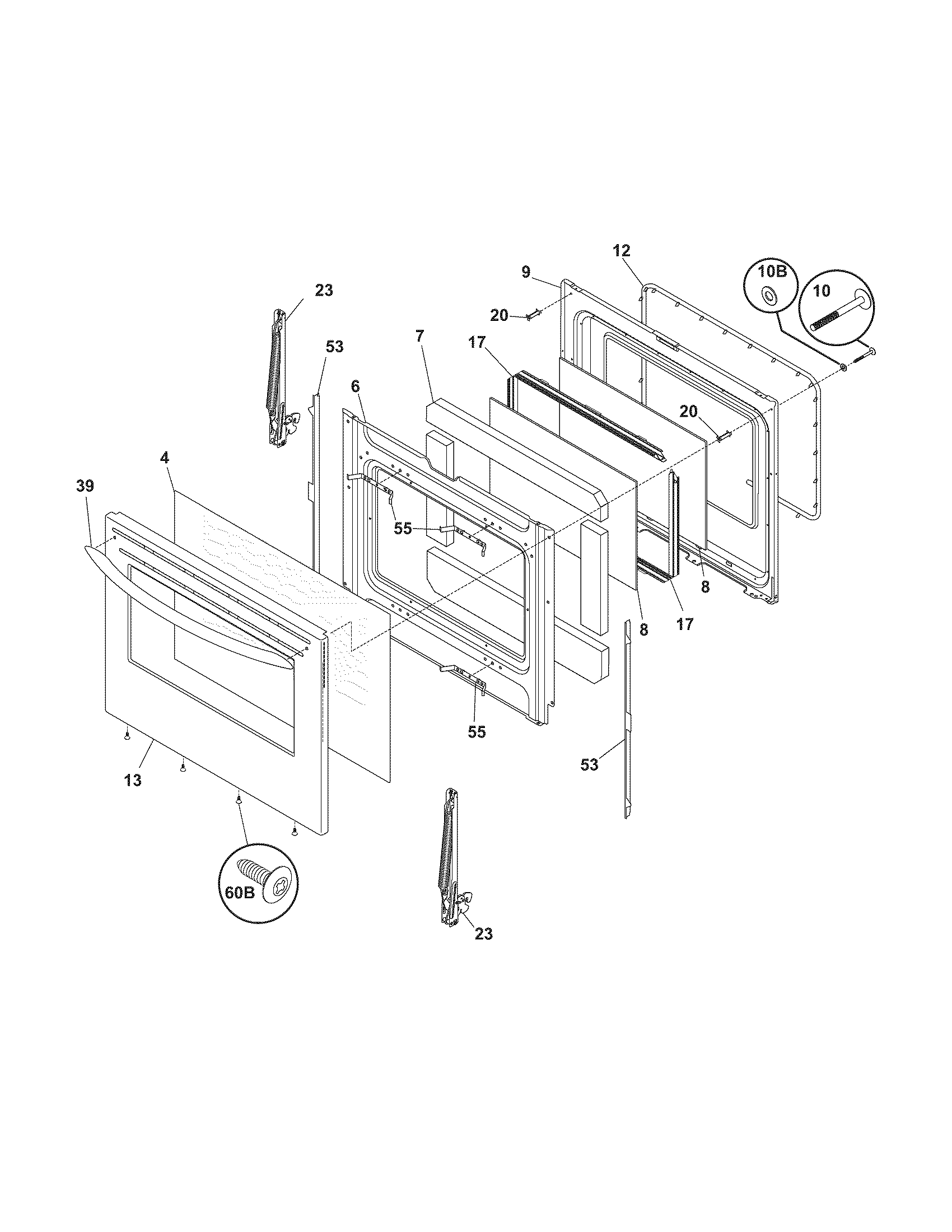

Door Parts diagram
CPLEF398CCB Electric Range Door Parts diagram

Recent Service Requests

CityManufacturerModel NumberPart NumberFailure CodeProblem DescriptionResolution
Newmarket, OntarioFrigidaireCPLEF398CCB316207620None indicatedThe oven does not heat up. The control shows no indication of problem (display, timer, controls and all buttons seem to work fine), but neither the bake nor broil elements heat up. (However the convection fan and element works ok.) The controller is getting 240 VAC through the L1 and L2 IN terminals, but no output voltage is coming from the L2 OUT and BAKE or BROIL terminals on the controller regardless of what the controller is set to. The oven temperature sensor checks out ok (it reads the correct resistance at room temerature).Repaired
Montreal, QuébecFrigidaireCPLEF398CCB316207620N/AFlat top range works, oven does not heat up.Repaired
Montreal, QuébecFrigidaireCPLEF398CCB316207620F1After setting the oven temperature there was a flash and a -pop- sound that came from the back of the oven head. The failure code was F1. Tried to reset the Circuit Breaker and tried again. No luck. The separate burners still workes but any input on the timer yielded the F1 fault code. ThanksReplaced with new in-stock timer
Mississauga, OntarioFrigidaireCPLEF398CCB316207620N/AOven elements not heating up.Repaired
Montreal, QuébecFrigidaireCPLEF398CCB316207620F9F9 fault code cannot be cleared. The door lock mechanism has been replaces as was the heating elements control. The door lock cycle between closed and open position continuously. The CLEAN indication on the display remains. All keys do not work and the PF indication stays on. This was previously discussed over the phone with Howard. Thank you.Awaiting receipt of timer
Surrey, British ColumbiaFrigidaireCPLEF398CCB316207620N/ADisplay works but oven does not heat up on any function. Elements were tested and are OK. Display beeps on all functions.Repaired
Toronto, OntarioFrigidaireCPLEF398CCB316207620N/Acan't push any buttons on the control panel.Awaiting receipt of timer
Victoria, British ColumbiaFrigidaireCPLEF398CCB316207620N/ANew Timer NeededReplaced with new in-stock timer
Waterloo, OntarioFrigidaireCPLEF398CCB316207620N/ATIMER SPARKED, BOARDS ARE BURNTReplaced with new in-stock timer
Longueuil, QuébecFrigidaireCPLEF398CCB316207620N/AMy oven doesn't heat, the timer is off. All the burners work fine.Replaced with new in-stock timer
Burlington, OntarioFrigidaireCPLEF398CCB316207620N/AOven is not heating upReplaced with new in-stock timer
Burlington, OntarioFrigidaireCPLEF398CCB316207620unit smoked/deadclock burnt, customer reported smoke out of the panelReplaced with new in-stock timer
Calgary, AlbertaElectroluxCPLEF398CCB316207620Noneboth the bake and broil elements don't turn on. I'm suspecting the problem is with the relay on the circuit board.Replaced with new in-stock timer
Calgary, AlbertaFrigidaireCPLEF398CCB316207620NONEBroil and Bake elements won't come on.Replaced with new in-stock timer
Calgary, AlbertaElectroluxCPLEF398CCB316207620NoneOven won't turn on.Replaced with new in-stock timer
Niagara Falls, OntarioFrigidaireCPLEF398CCB316207620N/AWhile using the oven, heard a pop noise and fire came from the back of the control panel. Breaker was tripped. Breaker will not reset due to a short in the timer.Replaced with reconditioned timer
Collingwood, OntarioFrigidaireCPLEF398CCB318185440F9F9 fault will not reset. not allowing complete oven to be used. I installed my old time which the oven section was no good this has allowed me to use top plates and warm drawer. door lock seems to be working properly.Repaired
Tillsonburg, OntarioFrigidaireCPLEF398CCB316207620N/AThis Request Service form is for the timer delivered to you in person by Carl Jailall on Monday, August 16, 2010. If it is not repairable, please check your inventory to see if you have one in stock.
Please inform me when it is ready (by phone or by email at ) and Carl will pick it up in person to avoid shipping charges.
Thanks!
Repaired
CALGARY, AlbertaFrigidaireCPLEF398CCBSF5501unknownThe oven / range stopped workinng altogether. The burners stopped heating up.Replaced with new in-stock timer
Delson, QuebecFrigidaireCPLEF398CCB316207620PF + F9 none stopPF code when trying to use the Oven. i tcheck the current 240v, the resistance of 3 oven Elements, everything is good. i reset the EOC, then the timer starts beeping and F9 code flashing. i did look a at my door latch. its closing and opening none stop. i tested my NC and NO switch on door latch actuator, everything is working fine (current is there and switch is doing there job). i am now at the EOC.... that all there is left.Repaired
Caledonia, OntarioFrigidaireCPLEF398CCB316207620noneHeard a pop and puff of black smoke and now portions of the timer no longer function. Can only heat oven to 170 as number pad is non-functional.Timer inspected, no repairs necessary
Waterloo, OntarioFrigidaireCPLEF398CCB316207600All lights are onAll lights are ON and the touch panel doesn't work. Can't touch any button.Awaiting receipt of timer
Sainte-Julie, QuebecFrigidaireCPLEF398CCBSF5501-S7620-PorTop heaters working, oven not working.Awaiting receipt of timer
carleton place, OntarioElectroluxCPLEF398CCB316207620N/Aoven dose not workRepaired
Ottawa, OntarioElectroluxCPLEF398CCB316207600noneDisplay shows broiling or baking (convection too) in progress but the broil or bake elements (both in good condition) do not heat up.
Not sure if the part number is correct. Most of the previous repairs quoted 316207620. However your webpage stated "The CPLEF398CCB Electric Range uses timer part number 316207600."
Repaired
Ottawa, OntarioFrigidaireCPLEF398CCB316207600noneDisplay shows broiling or baking (convection too) in progress but the broil or bake elements (both in good condition) do not heat up. Not sure if the part number is correct. Most of the previous repairs quoted 316207620. However your webpage stated "The CPLEF398CCB Electric Range uses timer part number 316207600."Repaired
KELOWNA, British ColumbiaFrigidaireCPLEF398CCBSF5501-S7620-P MODEL #316207620F1 ERRError message will come on within 5-7 hours after main power breaker is turned back on. Number selection for temperature very sensitive and usually takes a few attempts to set the desired temp.Timer inspected, no repairs necessary
St. Catharines, OntarioFrigidaireCPLEF398CCBspitfire controls sf5501-s7620-pa model # 31620762PFwhen I set the oven to bake at 400 F or down to 350 F, the controls read out clicks to "PF". The stove still works. I checked the back of the range, and all the connections seem good. I have turned the power from the breaker for 15 min, and then tried again with the same result. I'll press clear a few seconds after the oven trips out on "PF", and then try again, and it fails again.Awaiting receipt of timer
Cambridge, OntarioFrigidaireCPLEF398CCB316207620F09Stuck on code F09, beep. Will not reset using cancel button, nor after power removed for hours. Door motor replaced with no change in error. Cancel button operates door lock motor, but returns to F09 error with beep. Thank you.Repaired

Common problems for Frigidaire CPLEF398CCB Electric Range Timer

Are you encountering a similar problem as them? Contact us now and we will try to help you fix your CPLEF398CCB timer-related problem.
i have a frigidaire cplef398ccb range, the oven does not heat up. everything else looks like it works fine
electronic range model # XXXXX serial number vf31936088 When I used the large front right element I realised during the setting at 2.4 the small element was red all the time I put the setting to OFF and the element still RED. don't want to stop... I must go to the breaker box to stop it.
Hell, I have an Electric oven ES400 controls...model #CPLEF398CCB, and the front right hand burn is stuck on high. I have to unplug it... can you help me please???
i am getting an error code "oc" on my display panel on my Frigidaire electric range. model number Cplef398ccb. It was in the cooking stage and then the power tripped from the main board and when i went to turn the unit back on it beeped. i hit clear and kept showing 'oc' oven top works find but i cannot press any buttons on the display for the oven. . . any suggestions?
Hi there, I have a Frigidaire electric oven model # XXXXX The range top works, but the oven/convection does not work at all! We have replaced the burners but that didn't work! Please help :)
I have a Frigidaire range Model # XXXXX While using range and rangetop heard a popping noise and the control pad is now off. The rangetop still works but the oven doesn't as the contol pad is inoperable. Is there an internal fuse that I can check, or what might be the problem.
model#CPLEF398CCB electric oven problem-right hand front element (dual surface radiant element)large element works on/off with dial.small element does not shut off at all.(shut off breaker) is this a result of a potentiometer control (dual) or hot surface sence switch or P12 power board or surface indicator or power board. could you please reply to me by e-mail thx XXX@XXXXXX.XXX
Frigidaire cplef398ccb Flashing F7 Re my Frigidaire cplef398ccb oven, it clicks whenever I touch the door sounds like relays clicking. Would that indicate the EDC needs replacing, I don't want to replace the wrong part.
F7 code and beeping I have a problem with my Frigidaire cplef398ccb range beeping and showing a F7 code.
So, I am cooking dinner on oven up top, and decide to add some bread below, so I preheat the oven, the clock counts down, but starts disapearing and coming back.... oven does not heat up....later I pulled the Oven out and notice the power cord barely in, so I plug it in, hoping that's the issue, still no heat up, clock clock, top range work fine, I don't have any kitchen power out, so no fuse is out, is there something I can check on this oven without having to call out a repairman... could it be the heating elements (both do not warm) or something else? any help would be appreciated!
Frigidaire cplef398ccb Flashing F7 My oven clicks when I touch the door, it sounds like relays clicking. Would that indicate that it is the EDC that needs replacing, I had origanally thought it was the EOC? Thanks
Programming a 2006 Pontiac Gran Prix Keyless remote I just need the programming instructions of a GM/L:22733523
I have a Frigidaire oven Model CPLEF398CCB. My daughter was baking muffins and it went stopped. The whole panel doesn't indicdate. When I turn an element on it indicates an F6 error. From my research Version 1 says replace EDC, Version 2 through 4 says replace EOC. I assume that EOC, sans for Eletronic Oven Control, but not sure what EDC is. Your help and possible part numbers would be appreciated. thanks, Brent
