Jenn-Air Slide-In Dual-Fuel Downdraft Range JDS9860AAB Timer Repair

Jenn-Air JDS9860AAB Slide-In Dual-Fuel Downdraft Range Features:

Jenn-Air JDS9860AAB Slide-In Dual-Fuel Downdraft Range
  • Electronic clock with two timers provides a sleek look and easy operation.
  • Electronic touch oven controls with keypad entry activate with just a light touch.
  • Customized control options let you adjust temperature, language, time, scroll speed and more.
  • Integrated control panel with no trim or frame adds style and is easy to clean.
  • Accepts optional two-burner module with sealed burners in place of grill.
  • Modular design gives you the flexibility of four-burner cooking and use of grill accessories.
  • One-piece sealed burners ensure spills stay on top for easy clean-up.
  • Curved glass styling with floating door provides a sleek, sophisticated appearance.
  • Available in black or white.
  • Large Panaview™ window allows you to see what's cooking, without opening door.
  • Conventional bake, roast and broil capabilities provide maximum cooking flexibility.
  • Most preferred convection oven.*
  • Dual speed convection oven has Convect Bake/Convect Roast options for superb results.
  • Bread Proofing, Keep Warm and Quick Preheat options expand oven capabilities.
  • Dehydration feature makes it easy to dry fruits, vegetables, herbs and flowers at home.
  • 4.0 cu. ft. oven makes it easy to fit an entire meal inside.
  • Self-clean feature with auto-lock makes cleaning the oven safe and hassle-free.
  • Electric oven provides balanced heat distribution for evenly browned baked goods.
  • Delay-start cooking and cleaning puts your oven to work while you're doing other things.
  • Eight-pass recessed broil element provides more even heat distribution for better results.
  • Variable temperature control broiling lets you adjust temperature from 350(') to 550(').
  • Gas cooking surface provides the excellent heating control cooks prefer.
  • Temperature probe included for excellent roasting results, every time.
  • Infinite surface control settings provide pinpoint temperature control for gourmet cooks.
  • E-ven Heat™ grill brings the ease and flavor of outdoor grilling to gas cooktop kitchens.
  • Two-speed downdraft ventilation system makes island and peninsula installation easy.

What is the timer/clock part number for the Jenn-Air JDS9860AAB Slide-In Dual-Fuel Downdraft Range?

Timer part number 7601P483-60 for Jenn-Air JDS9860AAB

The JDS9860AAB Slide-In Dual-Fuel Downdraft Range uses timer part number 7601P483-60.

Do you have a failed Jenn-Air JDS9860AAB control panel? Click here:

Request Appliance Timer Service

We can repair or replace your faulty Jenn-Air JDS9860AAB timer.

JDS9860AAB are also sometimes referred to using these Alternative Names/Model numbers

Maytag JDS9860AAB Slide-In Dual-Fuel Downdraft Range, Whirlpool JDS9860AAB Slide-In Dual-Fuel Downdraft Range

JDS9860AAB Schematic and Wiring Diagrams

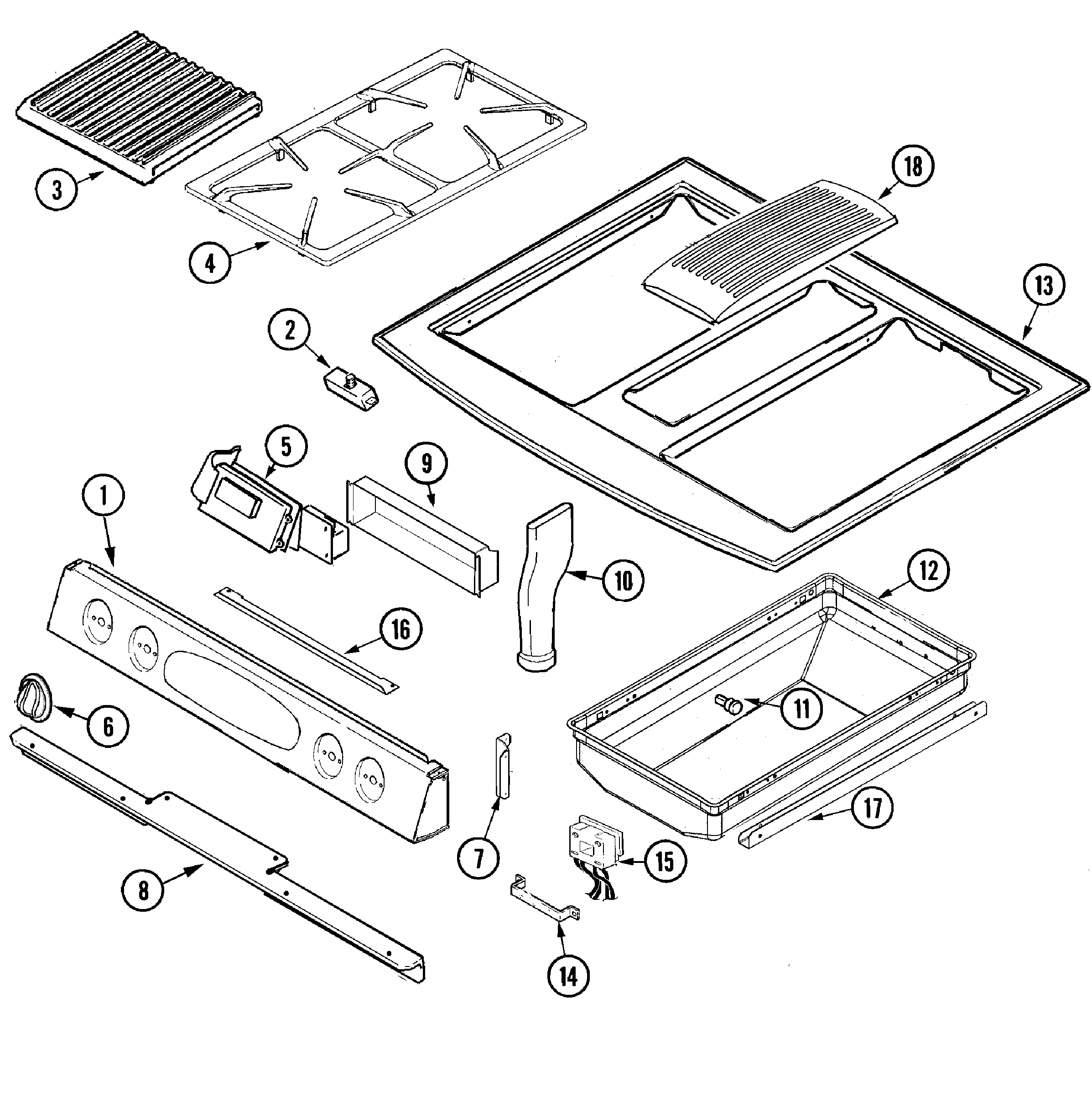

Control panel/top assembly Parts diagram
JDS9860AAB Slide-In Dual-Fuel Downdraft Range Control panel/top assembly Parts diagram
Oven/base Parts diagram
JDS9860AAB Slide-In Dual-Fuel Downdraft Range Oven/base Parts diagram

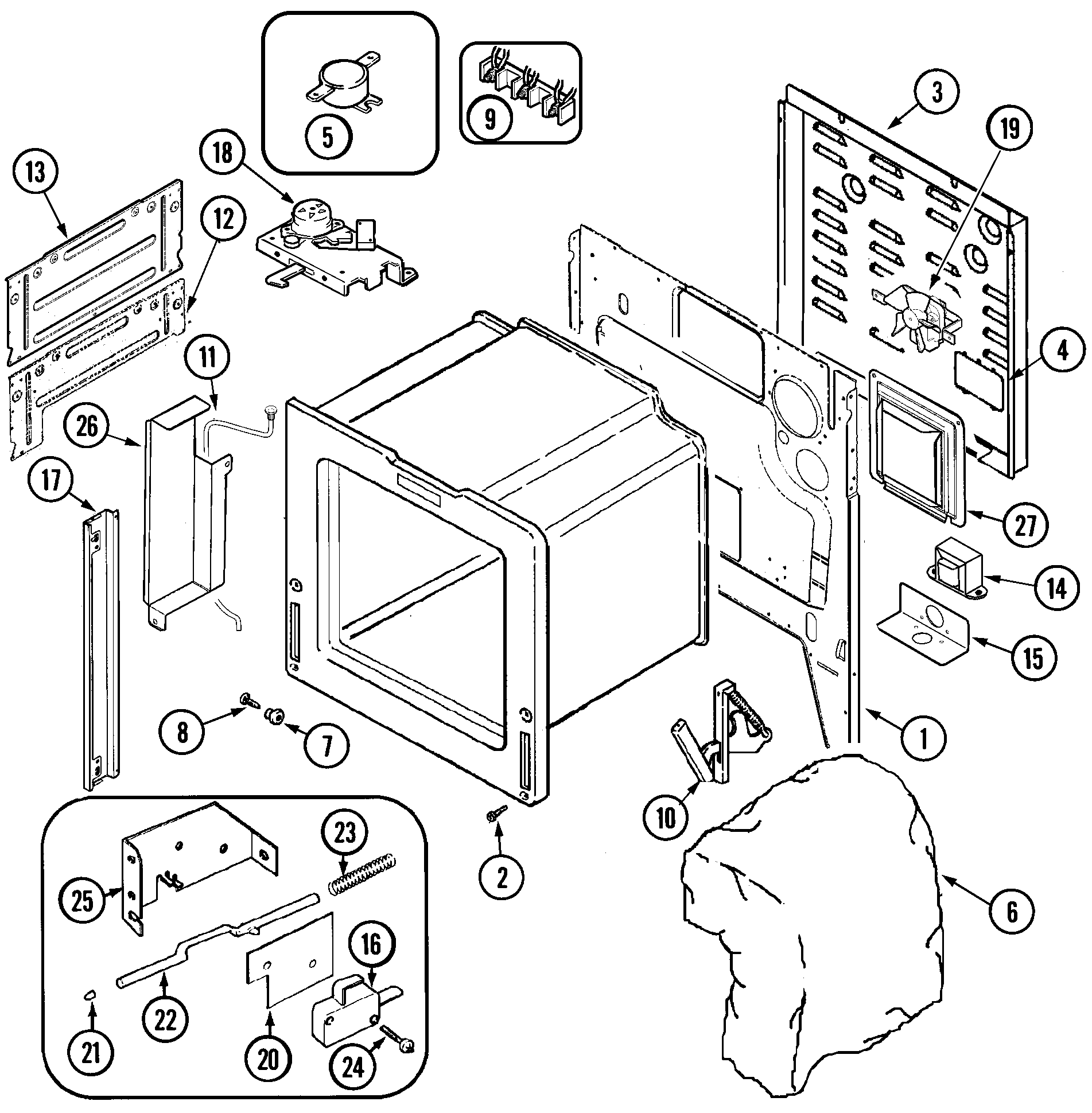

Body Parts diagram
JDS9860AAB Slide-In Dual-Fuel Downdraft Range Body Parts diagram

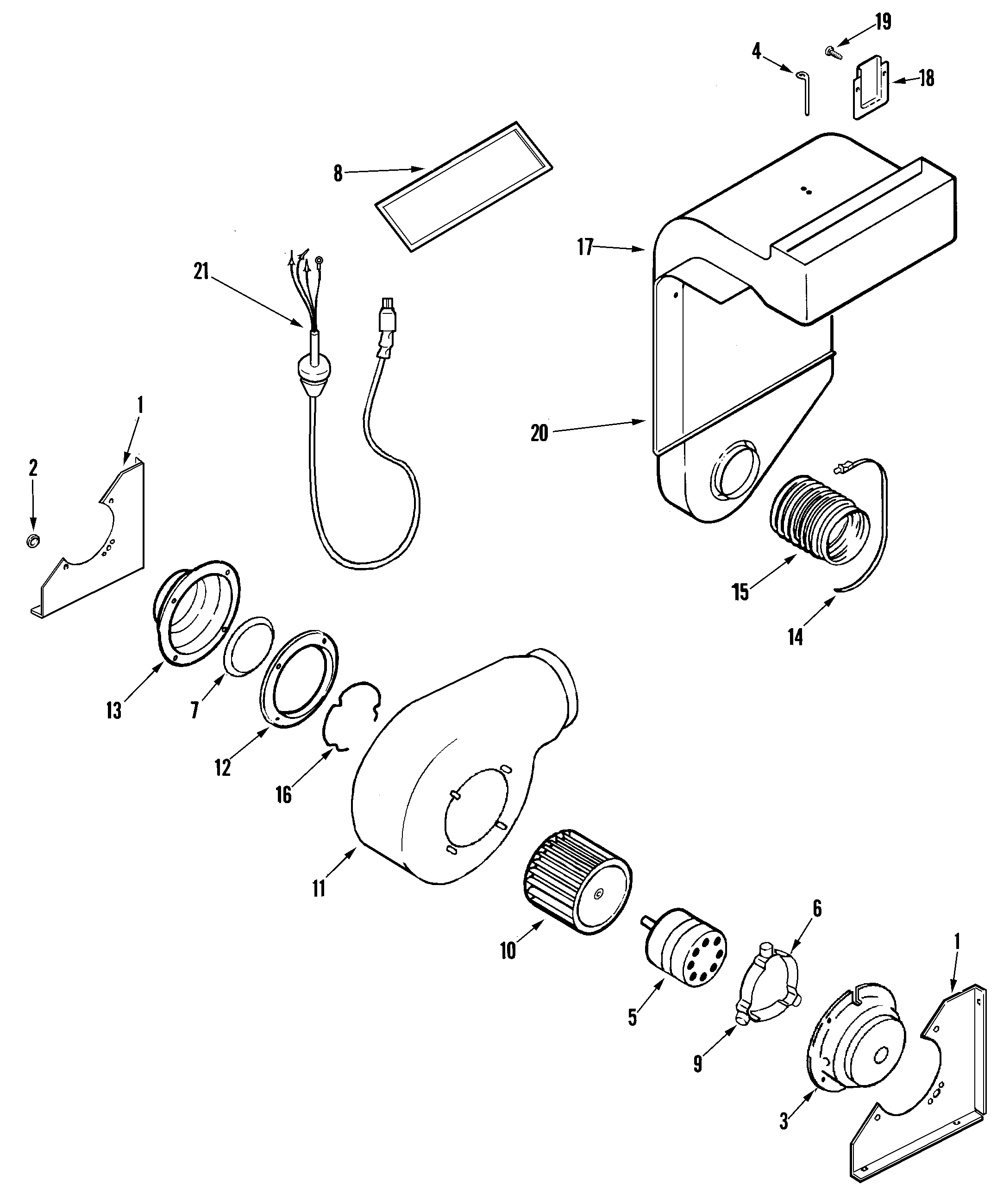

Blower assembly (plenum) Parts diagram
JDS9860AAB Slide-In Dual-Fuel Downdraft Range Blower assembly (plenum) Parts diagram

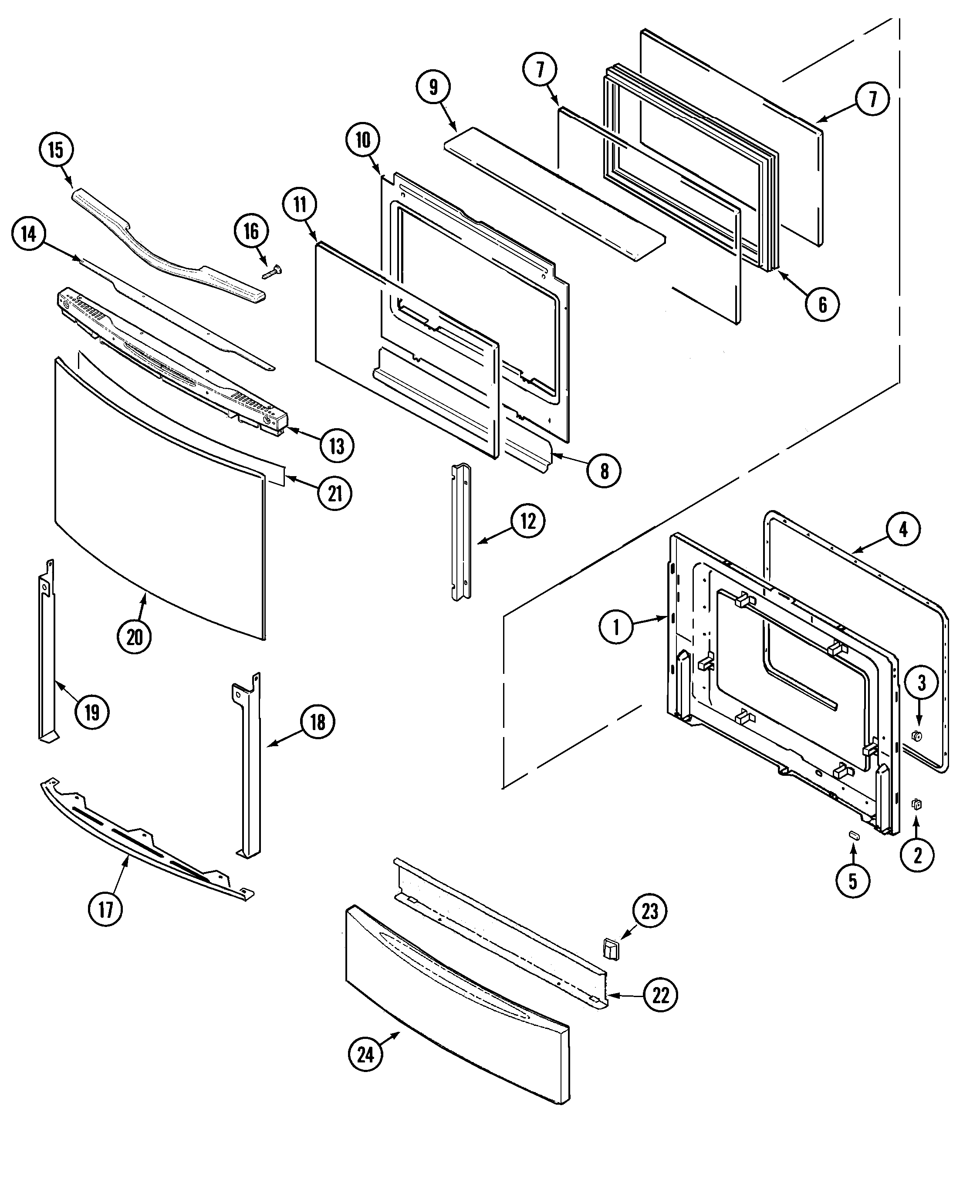

Door/access panel Parts diagram
JDS9860AAB Slide-In Dual-Fuel Downdraft Range Door/access panel Parts diagram

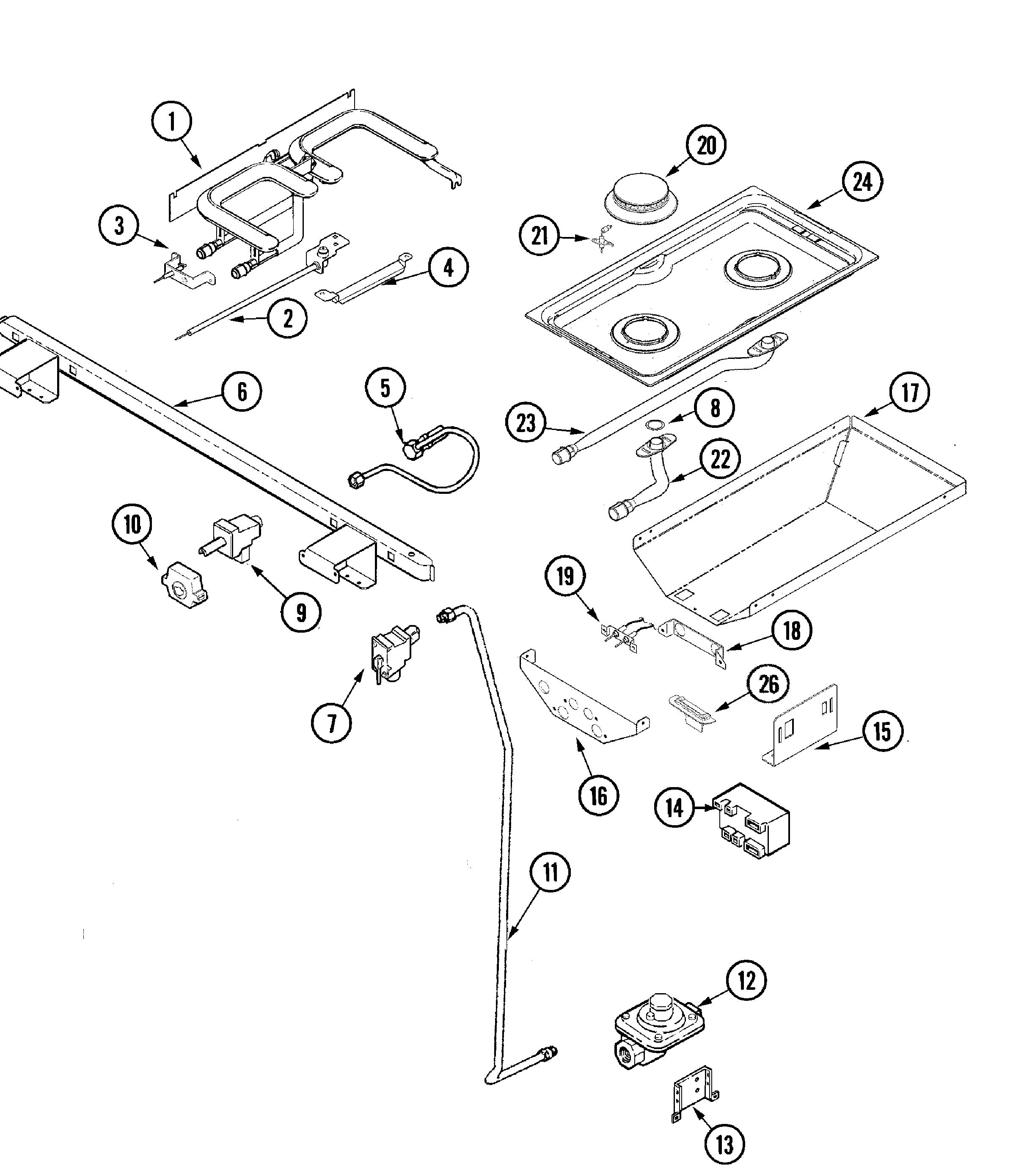

Gas controls Parts diagram
JDS9860AAB Slide-In Dual-Fuel Downdraft Range Gas controls Parts diagram

Recent Service Requests

CityProblem DescriptionResolution
Bozeman, MontanaControl Board, original part #WPL74006074, needs replacement due to the Broiler mode is stuck ON, and will NOT turn offAwaiting receipt of timer

Common problems for Jenn-Air Slide-In Dual-Fuel Downdraft Range JDS9860AAB Timer Repair

Are you encountering a similar problem as them? Contact us now and we will try to help you fix your JDS9860AAB timer-related problem.
Has A F1-8 Error... I Replaced The Electronic Control Board Still Has Error.. I Am Able To Cook Up Top But Cant Get The Oven To Function Please Help.
I have a Jenn-air duel fuel downdraft slide in oven. Model is JDS9860AAB. The convection fan is not working or only once in a while. If I manually rotate fan sometimes it will start going. I need to locate the Part(s) to fix this. Most importantly is I need to know how to fix it. Can this be fixed without having to slide oven out? In th eoven cavity the fan is at the back and a cover has 6 screws located at 12,2,4,6,8, and 10 o'clock poistions. Is it a simple matter of removing screws, lifting out part, undoing electrical connector and then reversing steps to install new part(s). I hope so! I really don't want to have to slide oven out. By the way, all other functions of the oven and oven are working perfectly.
The Enter button and the 2 clock buttons will not work. Other buttons on control panel work fine. Ideas of problem? or, Solution?
Our jenn air model js9860aab control panel buttons on the panel do not respond--is there a rebuild kit available to repair this -- because without these buttons, the convection oven of this duel fuel oven does not work--any ideas -- gmekesa
Jenn Aire JDS9860AAB F1 error code. Sometimes oven heats then throws error code. Other times appears to work correctly via touch pad but oven doesn't heat. From what I've read it appears to be Touchpad or circuit board. Can you help me close in on this? Thanks Bob
My Jenn Air Dual fuel slide in oven (2003) Mdl JDS9860AAB Resets itself as if it had lost AC power. This happens about once a week. or if I am cooking an important meal (like Thankgiving) It resets itself once or twice during cooking in the oven. Any Ideas?Thx,Joel
I have a Jenn-Air 30 in JDS9860AAB Dual-fuel self-clean slide-in w downdraft ventilation and convection. The bake element burned out on me. I bought a replacement element. I removed teh screws and pulled out the old element BUT now can't seem to put in the new element.I push the prongers into the holes but nothing grabs them ... they are free sliding. Shouldn't they fit into some kind of slot for contact?
Model JDS9860AAB range/oven combo has F1-7 code and can't cancel or reset.
Jenn Air electric slide in drowndraft oven less than 3 years old...touchpad will not work at all. The clock is working. We have flipped breaker and tried to restart. Display buttons still will not work. Any advice?
I have a JDS9860AAB. The keypad shows F1-8. What do it mean? ;o)
I have a JennAir dual fuel downdraft oven, model JDS9860AAB. There is a drain in the left hand cartridge well to drain fats melted while using the grill unit. The diameter of the drain hole is 1/8 inch at most; the melted fats are collected in a cup at the bottom of the range. You guessed it, the drain tube has clogged. I have been able to use a 7 inch nylon cable tie to ream it out, and have tried boiling water with dishwasher detergent, but it still doesn't drain. Could it be blown out with compressed air?
i have a jenn air oven model jds9860aab , the control for the oven is flashing F1-8 , i have tried replacing the ERC and the same F1-8 is still happening , i read on a appliance repair blog that the problem may be the oven sensor part number 74004943 or 12001656 , i have the resistence on it and the resistence is very high with the sensor at room temprature. i dont want to purchase and install a new sensor only to find the problem is not solved however i am willing to take the chance
Hello my jenn-air range top oven alarm just started going off . How do I stop it? Any suggestions?
Getting F1-7 error code on JDS9860AAB.
