Frigidaire Electric Range CFEF372BC2 Timer Repair

What is the timer/clock part number for the Frigidaire CFEF372BC2 Electric Range?

Timer part number 318185830 for Frigidaire CFEF372BC2

The CFEF372BC2 Electric Range uses timer part number 318185830.

Do you have a failed Frigidaire CFEF372BC2 control panel? Click here:

Request Appliance Timer Service

We can repair or replace your faulty Frigidaire CFEF372BC2 timer.

CFEF372BC2 are also sometimes referred to using these Alternative Names/Model numbers

Electrolux CFEF372BC2 Electric Range, CFEF372BC3

CFEF372BC2 Schematic and Wiring Diagrams

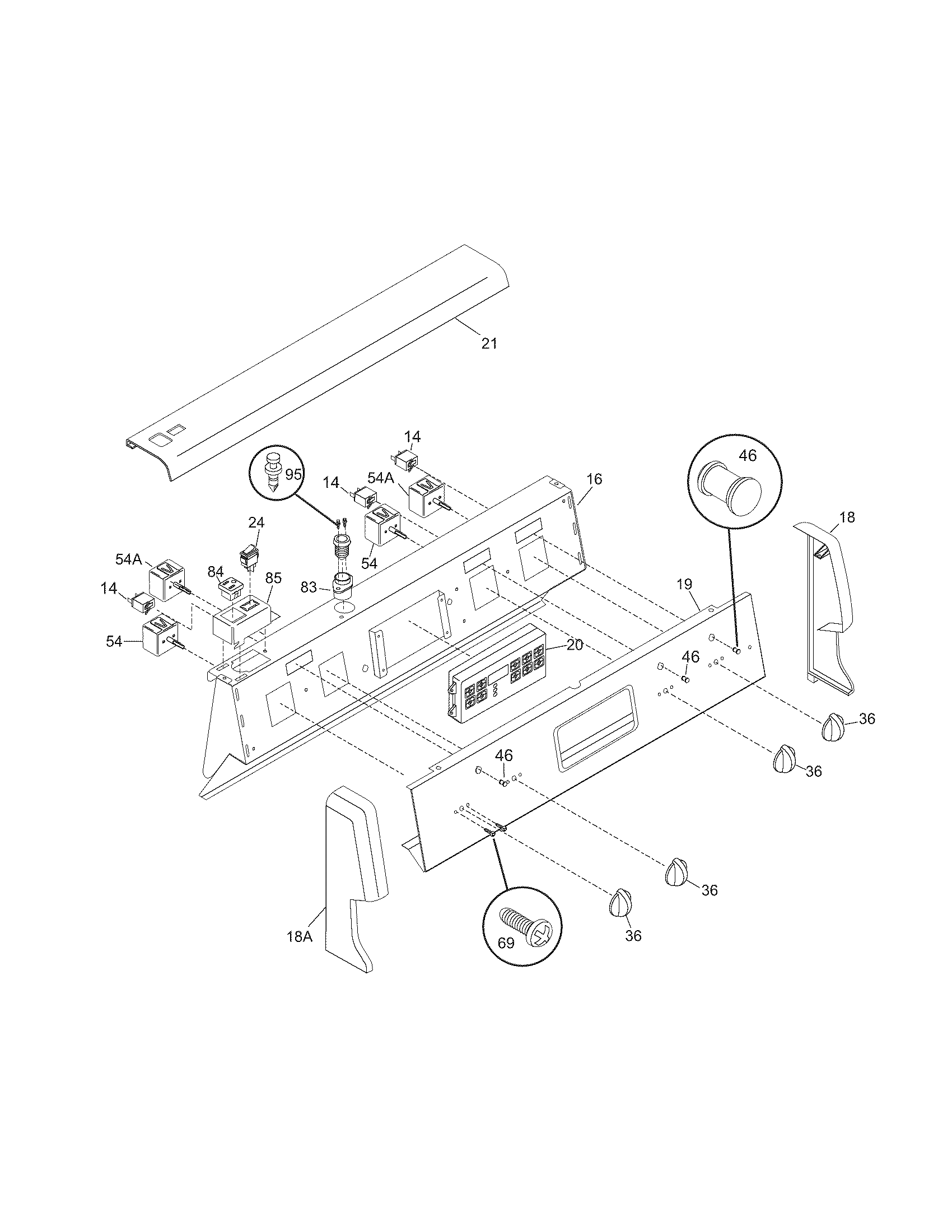

Backguard Parts diagram
CFEF372BC2 Electric Range Backguard Parts diagram

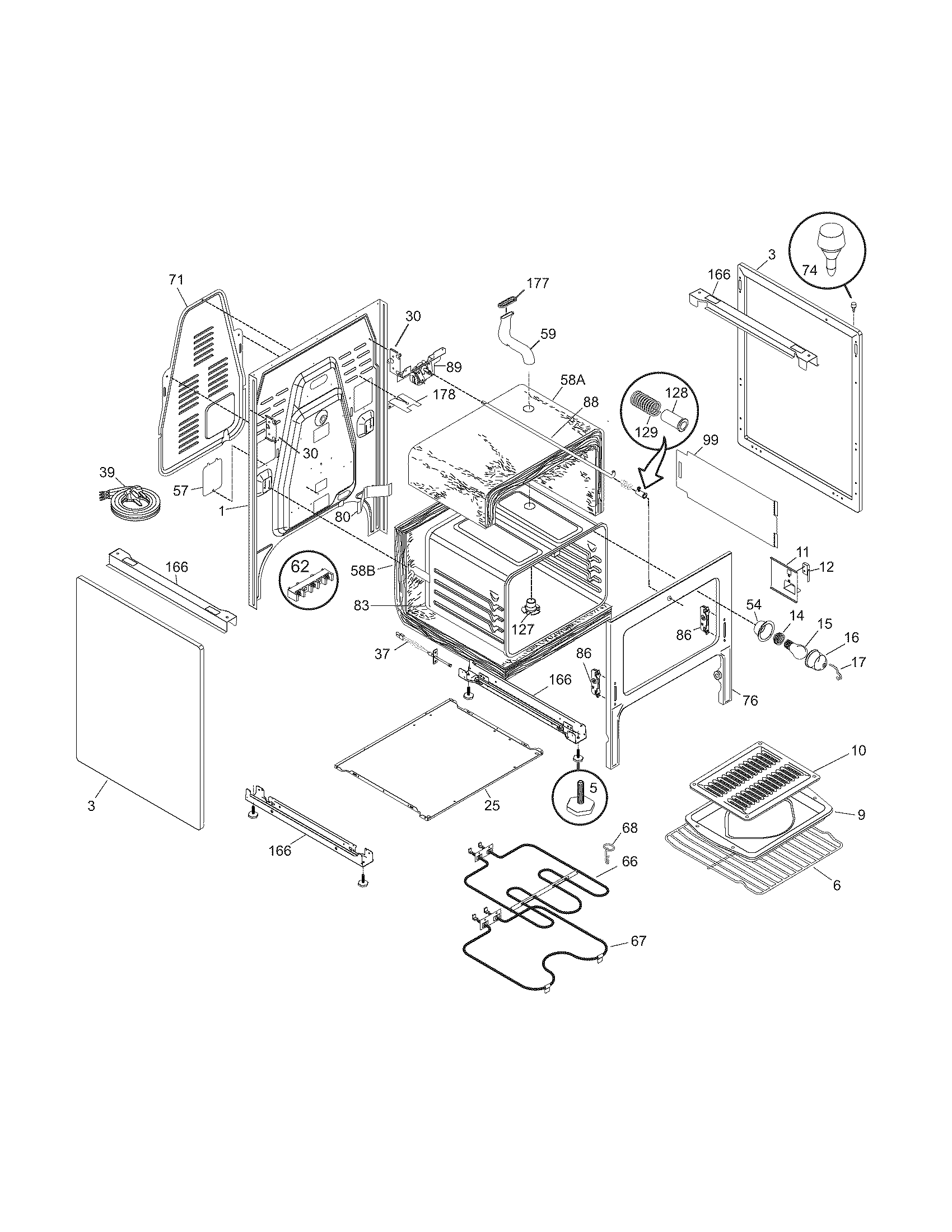

Body Parts diagram
CFEF372BC2 Electric Range Body Parts diagram

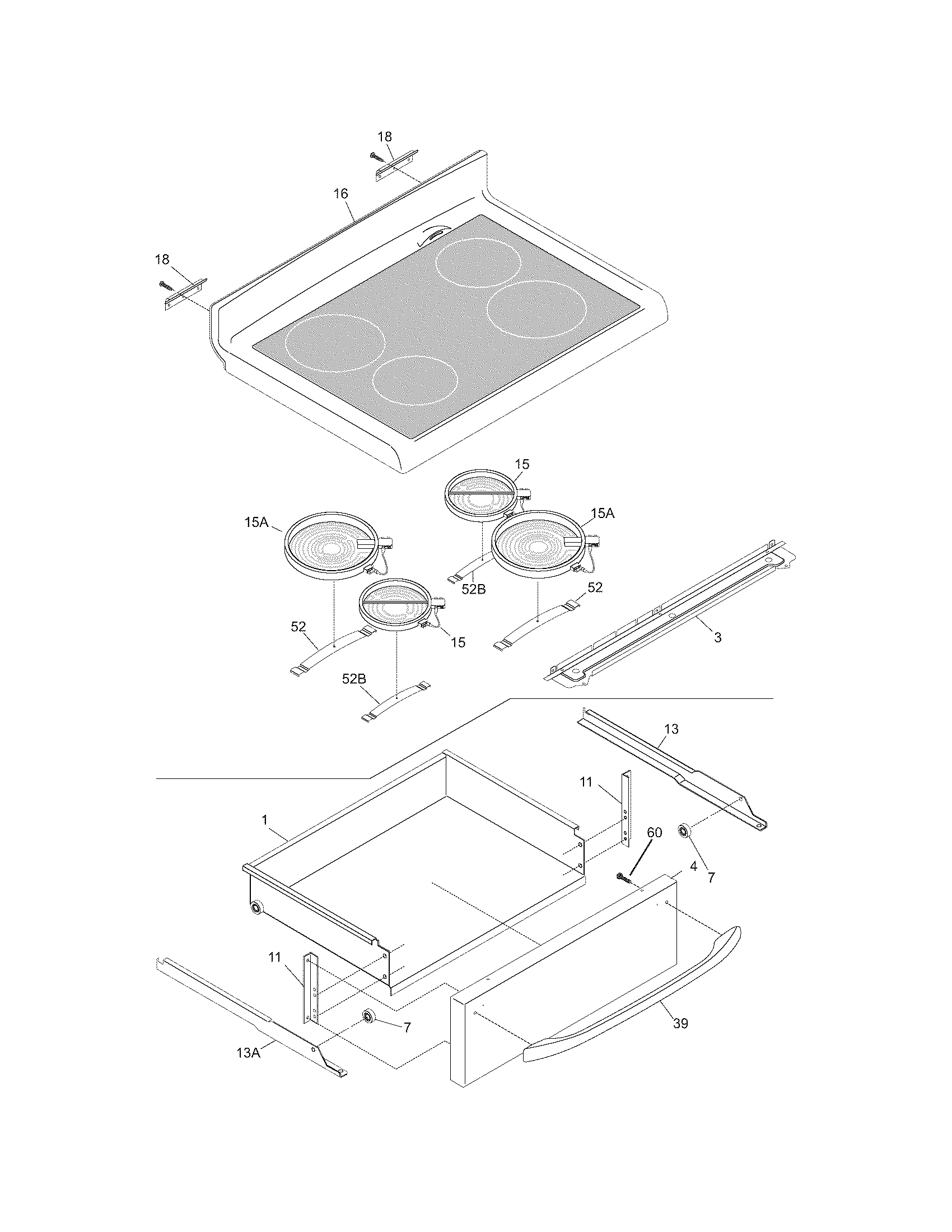

Top/drawer Parts diagram
CFEF372BC2 Electric Range Top/drawer Parts diagram

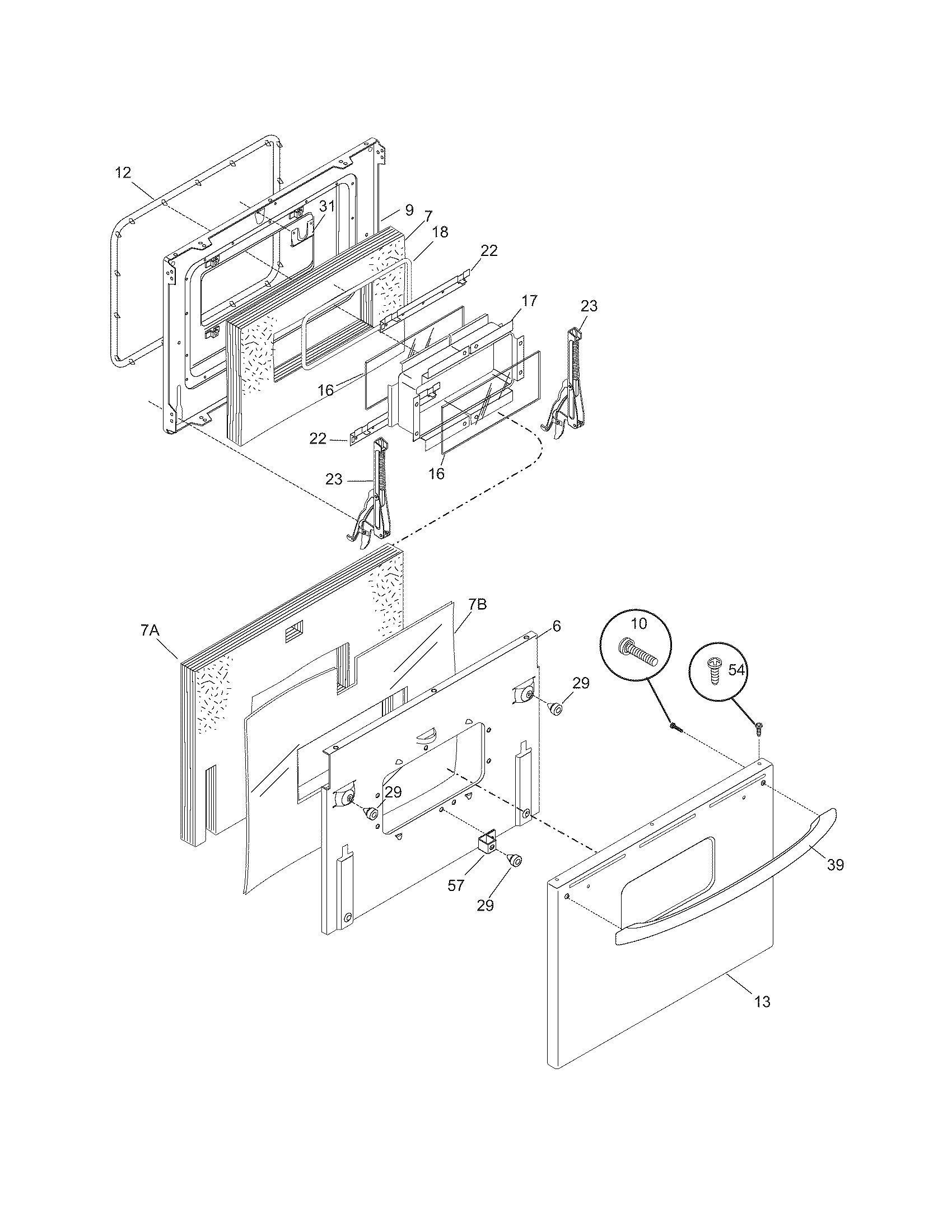

Door Parts diagram
CFEF372BC2 Electric Range Door Parts diagram

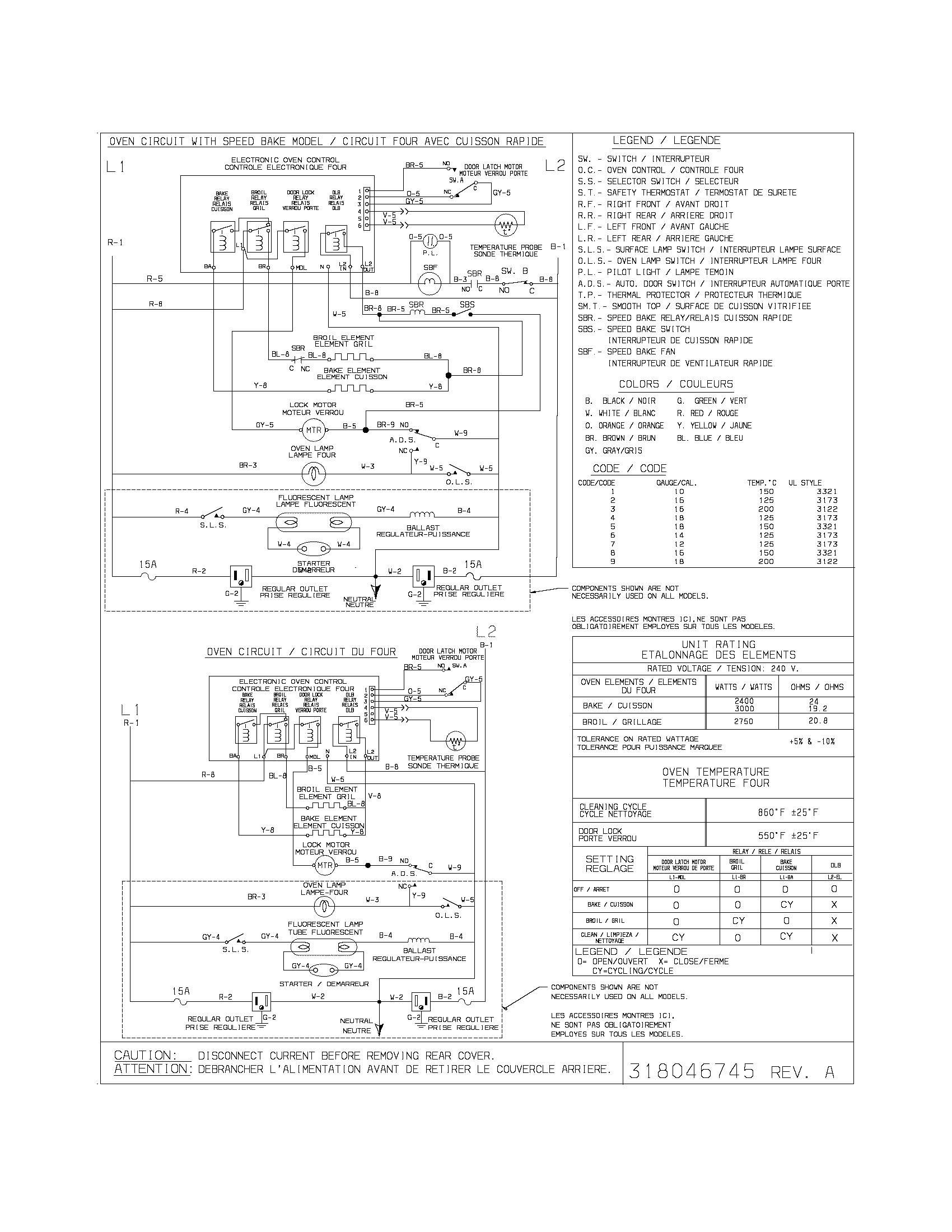

Wiring diagram Parts diagram
CFEF372BC2 Electric Range Wiring diagram Parts diagram

Recent Service Requests

CityProblem DescriptionResolution
Montréal, QuebecThe oven doesn’t work, F1 error on the board.Awaiting receipt of timer
Squamish, British ColumbiaTimer won't turn on, stove still workingAwaiting receipt of timer
Mississauga, OntarioBroiler and Bake elements not coming on. Everything else about the timer seems to work. 110v measured on one leg of the elements and at the timer. 110v going into the DLB relay but nothing coming out of the DLB relayfor the second 110v leg to the elements.Awaiting receipt of timer
Oshawa, OntarioStarted with F1 then display went completely blank no oven control but all stove top burners workAwaiting receipt of timer
Vaudreuil/Dorion, Quebecno display at all, it is like there is no power getting to the display boardBeyond Repair
Ottawa, Ontario"Up arrow" button no longer worksAwaiting receipt of timer
Brandon, ManitobaF3 error preventing the oven from heating.Repaired
Brandon, ManitobaElements work. Stove fails to heat.Repaired
Welland, OntarioInitially it was intermittent now F1 code and constant beep.. check the probe for correct impedance which was good. Last time I inquired you had non of these in stock so will send this one directly to you for repair.Repaired
Ottawa, OntarioTimer on/off and cook time bottoms are not working.Awaiting receipt of timer
Oromocto, New BrunswickF1 failure code appeared. And now the control panel doesnt work anymore and the oven stop working to. Suspecting the control panel relay n/s. Need a new control panel.Awaiting receipt of timer
Ottawa, Ontario-face light lights up, clock works,
-all buttons work (broil, bake, etc) but do not actually perform the their function (elements do not get power)
-lower element burnt and snapped causing the power surge and part failure. element was replaced but there is still no power to upper or lower element
-all wiring has been checked for damage or burns and seems ok
Toronto, OntarioF1 comes on with a warning sound that stays on until power is disabled..Stove elements work fine.Repaired
Kentville, Nova ScotiaCannot adjust (increase) oven temperature... interested in a new or reconditioned part.Awaiting receipt of timer
Kentville, Nova ScotiaTimer not working....can adjust the temperature down but not upAwaiting receipt of timer
Burnaby, British ColumbiaDoor locked after self clean. Timer stopped working at the same time. When i press Bake etc it shows OFF.Repaired
Mississauga, OntarioF3 error code dsplays even after replacing oven temperature sensor probe. Problem started out being intermittent but now is constant.Beyond Repair
RenfrewJust no power to the unit - control module malfunction?Repaired
Canmore, AlbertaControl board not lit. When buttons are pressed a clicking sounds can be heard but the oven is not coming on in any modes.Awaiting receipt of timer

Common problems for Frigidaire Electric Range CFEF372BC2 Timer Repair

Are you encountering a similar problem as them? Contact us now and we will try to help you fix your CFEF372BC2 timer-related problem.
I have a Frigidaire oven model CFEF372BC2. The oven door is locked shut. The door closed light is blinking. When I push the oven or broil the letters "DR" illuminate. I tried to unplug it for 20 minutes and nothing changed. I held the clear button until F1 appeared. When I hit clear it went back to the blinking light for door closed. Can you tell me how to fix this? Thank you, Terry
Frigidaire range locked the doors on me when I was trying to use the self cleaning. I can't seem to open the doors now and it's been over 24hrs since it locked on me. I don't think it cleaned either.
Hi I have a fridegdaire smooth top self-cleaning oven that I put thru a 2 hr completed the cycle and is now making a "clicking" noise and flashing Door Locked. I canot clear the oven nor can i open the door.
We have a Frigidaire range, glass top M/N CFEF372BC2, S/N NF50627203, February 2005 The temperature/clock control is an electronic push button with up and down arrows whose up arrow no longer functions. When the Bake/Broil button is pushed and the up arrow is pushed to set the temperature nothing happens, if the down arrow is pushed then 350 degrees is highlighted and the temperature can only be adjusted downwards. Cooking like this for a year now, tired of waiting for Mr. Fixit so doing my own research. Is the part I need a DUAL ELEMENT ELECTRONIC CONTROL part number PS11151078? (I can order this part on line for $130.03 if it is the right one and will if I can install myself,) Any advice would be appreciated... Ms Fixit(maybe)
I have a frigidaire oven CFEF372BC2 - ser. # XXXXX 40320849 I had the oven on and tried to switch to broil. accidently i touched the clear button. since that time my self clean don't work. i had a repairman in. he said he was not sure it could be the circuit board. one of my neighbors got exactly the same problem with his oven. same model. what do you suggest?
My Frigidaire Oven continuously burns baking on the bottom, while not browning on the top. I would think that both the bottom and top elements would be on for the bake setting, but only the bottom element comes on. The top remains doughy while the bottom burns. I have to put the setting to broil to brown or finish cooking the top. Any suggestions? Is there a setting that might need adjusting?
Frigidaire CFEF372BC2 Electric Kitchen oven keeps locking itself simultaneously over and over and won't stop the light keeps flashing and we can't use the oven at all. Tried running self clean and that didn't work....any suggestions??
frigidaire CFEF372BC2 electric oven - oven door won't unlock after cleaning cycle
I have a fridgidaire oven model #CFEF372BC2 was using electrical outlet - went dead - is there a reset or in line fuse to fix problem - flipping breaker did not help
