Amana Electric Slide-In Range ARRS6550 Timer Repair

What is the timer/clock part number for the Amana ARRS6550 Electric Slide-In Range?

Timer part number 31-315570-07-0 for Amana ARRS6550

The ARRS6550 Electric Slide-In Range uses timer part number 31-315570-07-0.

Do you have a failed Amana ARRS6550 control panel? Click here:

We can repair or replace your faulty Amana ARRS6550 timer.

ARRS6550 are also sometimes referred to using these Alternative Names/Model numbers

Whirlpool ARRS6550 Electric Slide-In Range, ARRS6550E-P1130677NE, ARRS6550LL/P1130677NLL, ARRS6550E-P1130691NE, ARRS6550LL/P1130691NLL, ARRS6550E-P1130647NE, ARRS6550E-P1130658NE, ARRS6550WW/P1130686NWW, ARRS6550WW/P1130666NWW, ARRS6550E-P1143905NWW, ARRS6550E-P1130686NE, ARRS6550E-P1130666NE, ARRS6550WW/P1130691NWW, ARRS6550WW/P1130647NWW, ARRS6550LL/P1130666NLL, ARRS6550LL/P1130658NLL, ARRS6550LL/P1130647NLL, ARRS6550E-P1143905NE, ARRS6550WW/P1130677NWW, ARRS6550LL/P1130686NLL, ARRS6550WW/P1130658NWW

ARRS6550 Schematic and Wiring Diagrams

Cabinet Parts diagram

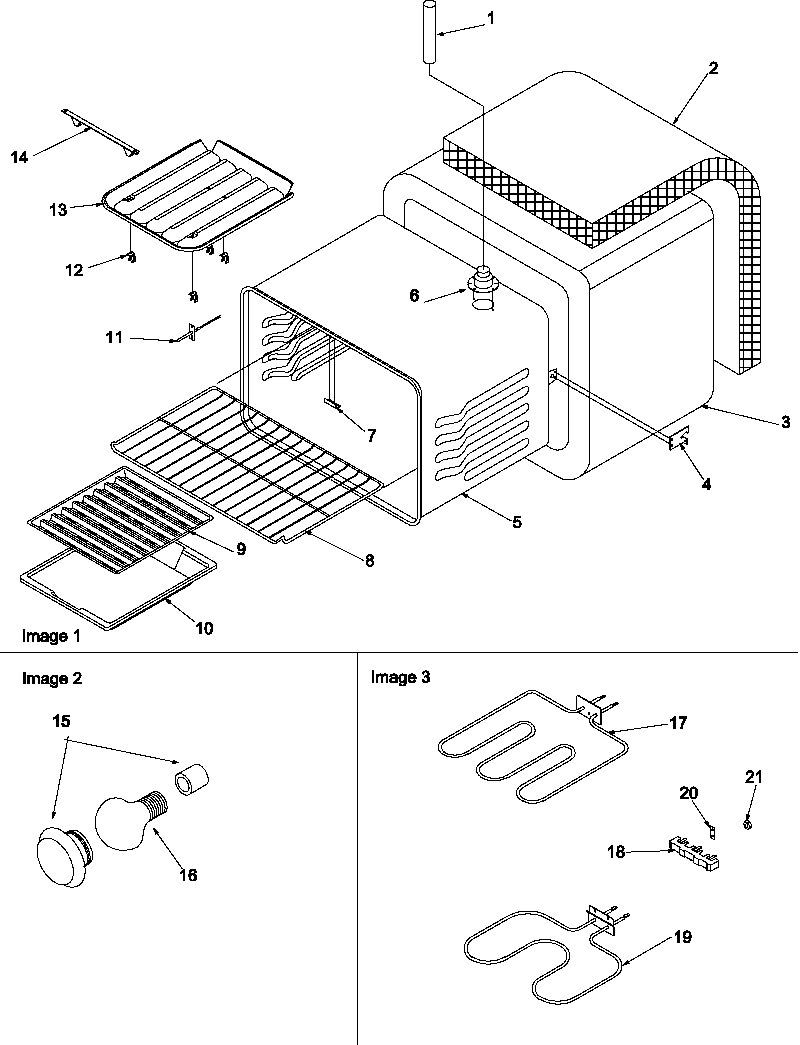

Cavity Parts diagram

Main top and backguard Parts diagram

Oven door and storage drawer Parts diagram

Recent Service Requests

City	Problem Description	Resolution
Tucson, Arizona	Oven will not turn on and timer display does not work. Burners would work for a little while, but now nothing but the LEDs for the burners will come on.	Repaired
Olympia, Washington	no display and no reaction to button input	Awaiting receipt of timer
Tualatin, Oregon	Unit was working fine until the lower oven element burned up, (like an arc welder). Now the digital display is blank and none of the electronic controls appear to function. The oven light still works and the cook top burners all work normal. The original plastic membrane was replaced about 5 years ago. A couple of the plastic clips holding the two halves of the plastic circuit board chassis had been damaged do to excessive pressure needed to operate with the original worn out membrane. Replacement parts were not available so it was necessary to reinforce the the chassis to maintain proper alignment of the membrane and buttons. I apologize for the extra inconvenience this may cause you. If our board is repairable and if you happen to have extra chassis pieces, please replace and charge us accordingly. Thank you.	Beyond Repair
Greenville, Texas	In bake, the Oven heats up past the set point by 50+ degF, but eventually turns off the coil. However the dispay continues to read the hot temperature even though the oven cools back down to room temperature. At this point the coil never cycles back on. Broil doesn't work at all.	Timer inspected, no repairs necessary
Coeur d'Alene, Idaho	not working	Beyond Repair
katy, Texas	does not turn on	Repaired
Akron, Ohio	oven will not heat up past so hot...	Awaiting receipt of timer
Montrose, Colorado	completely dead.	Awaiting receipt of timer
Crumpler, North Carolina	Oven will not operate. Flashes code F-5.	Beyond Repair
Danville, Indiana	The BAKE mode does not work. Only the upper BROIL heatin element is energized. The lower BAKE heating element does not heat. Heating element is OK.	Repaired
Lynden, Washington	Oven will not function Timer readout -- no display	Repaired
Portland, Texas	Will Not power up. No display. 120V @ transformer connector.	Repaired
Tucson, Arizona	Oven will not turn on and timer display does not work. Burners would work for a little while, but now nothing but the LEDs for the burners will come on.	Repaired
Lake Oswego, Oregon	LET ME KNOW IF YOU HAVE ONE IN YOUR INVENTORY	Repaired
Ankeny, Iowa	In process of putting in new lower element. The element was not yet installed, circuit breaker was still on (thought it had been turned off), plugged in stove and heard a pop. Now only the stove burners and the broiler work. The lower element in oven does not work. Continues to beep and show F-5.	Repaired

Common problems for Amana Electric Slide-In Range ARRS6550 Timer Repair

Are you encountering a similar problem as them? Contact us now and we will try to help you fix your ARRS6550 timer-related problem.

My Amana electric oven, Mod#ARRS6550WW, has popped the F1 code on me. The oven turned on, came up to temp and cycled off, then when attempting to turn back on, the code appeared.
