Amana ACS4250AB Timer Repair

Amana ACS4250AB Electronic Range/Oven Features:

Amana ACS4250AB Electronic Range/Oven
  • Electric slide in range
  • 4 cooking zones
  • 2 racks, 5 rack positions
  • Self cleaning oven
  • Oven viewing window
  • Interior oven light
  • Storage drawer
  • Ceramic cooktop finish
  • Glass oven door finish

What is the timer/clock part number for the Amana ACS4250AB Electronic Range/Oven?

Timer part number 31944801 for Amana ACS3350AS Range

The ACS4250AB Electronic Range/Oven uses timer part number Y0315570. The manufacturers of the Y0315570 timer part have permanently discontinued its production.

Do you have a failed ACS4250AB Electronic Range/Oven control panel?
Click Here:

Request Appliance Timer Service

We can repair or replace your faulty ACS4250AB Electronic Range/Oven timer

Common ACS4250AB timer/clock/ERC problems

MY ELECTRIC AMANA OVEN MODEL acs4250ab IN THE LAST COUPLE OF DAYS WHEN TURNED ON DOESN'T HEAT UP PAST 135 I KEEP HEARING A CLICKING NOISE. i TURNED ON THE BROILER AND WHEN IT GOT TO 350 TURNED OFF THE BROILER AND TURN IT ON BAKE IT THEN HELD THE TEMP SO I COULD MAKE DINNER WHAT DO YOU THINK IT MIGHT BE! THANK YOU DANIEL BAREFFOT

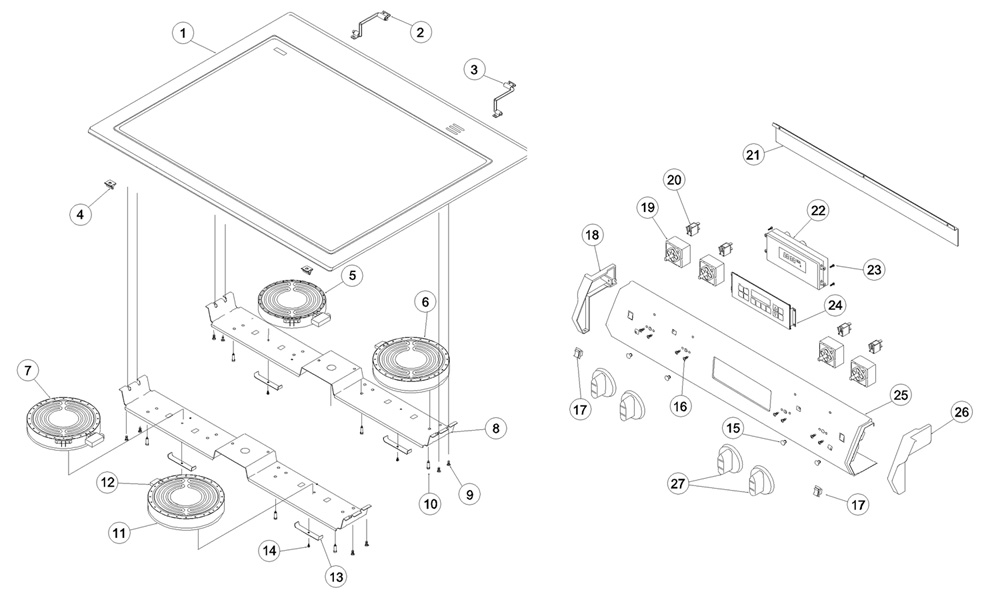

Schematic Diagram for Amana ACS4250AB Range

Amana ACS4250AB Range Schematic Diagram
Click image to enlarge

Appliancetimers.ca Service requests for Amana ACS4250AB Electronic Range/Oven Timer

CityProblem DescriptionResolution
Alvin, TexasOven pre-heated to 400 deg, then reduced setting for baking at 350 deg. Checked about 1 hr later and oven was cool. Would no longer heat. No symptoms noted at control panel.Repaired
seminole, Floridabake element not working. new bake element, hi limit checks out OK. broil element wotks.Awaiting receipt of timer
Shidler, OklahomaElement went out then I forgot and turned on stove and it blew the clock part.Beyond Repair
Loganville, GeorgiaI wish to purchase a reconditioned timerAwaiting receipt of timer
baton rouge, Louisianabroiler works/ botton bake burner doesn't getting power to the board /no power out of board to bake burner my guess is bad relay on the boardRepaired
Georgetown, DelawareTimer will not power on, Service Rep, diagnoses replace Timer / control panel Y0315570Beyond Repair
Turlock, CaliforniaOven Will only heat up to 100 or 135 degrees when baking or Broiling. Sometimes will heat up over 425 but won't hold the temp and can't complete baking. Clock will also reset when it stops heating or just touching the keypad. I have re-soldered some bad connections and it's worked for a while. But eventually fails to heat and keep the time again.
Repair if possible. Please call with diagnosis.
Repaired
Trumbull, ConnecticutThing failed when there was a boil over.Awaiting receipt of timer
Trumbull, ConnecticutThe stovetop is working. Te timer crapped out due to a boil over.Awaiting receipt of timer
Eugene, OregonOven will not work. Stove top is working fine and all electric lights are on.Had a local shop look at and they said bad timer/boardAwaiting receipt of timer
visalia, Californialiquid spilled on stove got onto the back of the timer shorting and charring a connector built into the board.Awaiting receipt of timer
Seattle, WashingtonNo heat from oven or broiler. Range and display both work, however my oven generates no heat.Repaired
Minneapolis, MinnesotaOven does not heat
If you can't fix it send me a rebuilt unit of yours. Scrap mine only if you can send me a replacement.
Repaired
Longmeadow, MassachusettsOriginally it was not heating the bake element. Now the display does not come on at all.Replaced with reconditioned timer
EUGENE, OregonOVEN DOES NOT HEAT, STOVE TOP WORKS,ALL DIGITAL LIGHT UP.Repaired
Chestnut Hill, MassachusettsThe clock timer/oven control panel does not light up, though the oven light works and the top burners work fine. Power is not interrupted to the timer/touch panel. It simply went dead without any obvious problem or cause. Not a power outage. Probably a component inside...transistor, integrated circuit, etc.

The electric range, Amana slide-in smooth top radiant burner model, has been in service for less than seven years. Everything else works fine.
Beyond Repair
Rowlett, TexasNo display, oven will not work.Awaiting receipt of timer
Grand Marais, MinnesotaOven and broiler elements will not come on.
Only receiving 120. There is 240 going into controller but no output on one leg of controller.
Repaired
Manchester, Iowaoven won't heat upRepaired
Grand Marais, MinnesotaOven and broiler elements will not come on.
Only receiving 120. There is 240 going into controller but no output on one leg of controller.
Repaired
